24 Core OPGW Optical Fiber Composite Overhead Ground Wire ACS Stranded Structure

  • 24 Core OPGW Optical Fiber Composite Overhead Ground Wire ACS Stranded Structure
  • 24 Core OPGW Optical Fiber Composite Overhead Ground Wire ACS Stranded Structure
Lieu d'origine CHINE
Nom de marque EBOCOM
Certification ISO
Numéro de modèle OPGW-24B1
Quantité de commande min 2000m
Prix EXW ≥2000m $0.87/M ≥5000m $0.84/M
Détails d'emballage Tambour en fer-bois ou tambour en bois sans fumigation
Délai de livraison 7 à 15 jours
Conditions de paiement T / t, l / c
Capacité d'approvisionnement 50000 KMS/jour

Contactez-moi pour des échantillons gratuits et des coupons.

Quel est l'app?:0086 18588475571

Wechat: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Type de câble OPGW Type de fibre G652D, G655, G657. Je suis désolé.
Matériau de la couche centrale Unité de tubes en acier inoxydable Noyau de fibre 24 noyau
Socle Disponible Température de stockage -40 ° C à + 70 ° C
Paquet de transport Tambour en bois de fer Couche ACS, AA
Modèle OPGW
Mettre en évidence

24 core OPGW fiber optic cable

,

OPGW overhead ground wire ACS

,

stranded structure OPGW cable
Laisser un message
Description de produit

Product Description

The Ebocom 24 Core OPGW (Optical Ground Wire) Fiber Optic Cable with stranded layer structure is specifically designed for high-voltage power transmission lines that require both grounding and communication capabilities in a single cable.

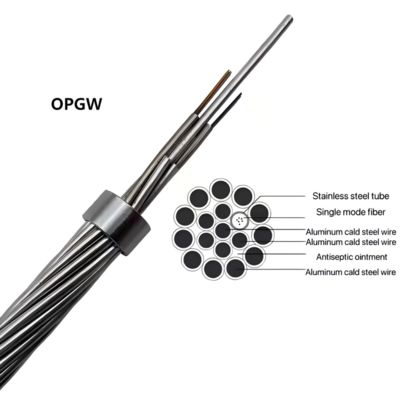

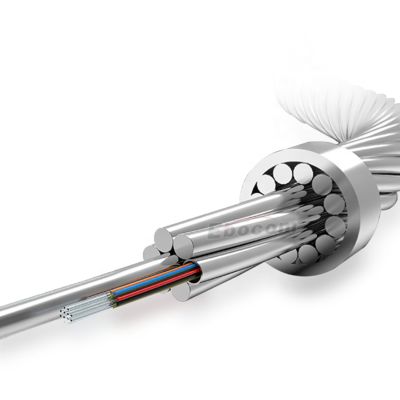

This structure features optical fibers contained in a stainless steel tube, which is stranded together with aluminum-clad steel and aluminum alloy wires to form a compact, high-strength cable.
The design provides excellent tensile performance, electrical conductivity, and lightning protection, making it suitable for long-span installations and harsh environments.

Key Features

  • 24 Core Optical Fiber: Provides stable and high-speed data transmission for power grid communication systems.

  • Stranded Layer Design: Stainless steel tube with optical fibers stranded with aluminum-clad steel and aluminum alloy wires for superior mechanical protection.

  • Dual Functionality: Serves as both a grounding wire and a communication medium in transmission systems.

  • High Tensile Strength: Ideal for long-span installations in 110kV–500kV transmission lines.

  • Excellent Corrosion Resistance: All-metal structure with aluminum-clad steel wires ensures long service life in outdoor environments.

  • Efficient Power Line Integration: Simplifies network construction by combining optical communication and power grounding.

  • Customizable Options: Outer diameter, fiber type, and wire configuration can be designed according to project requirements.

Applications

  • Power grid communication and SCADA systems

  • Transmission and substation monitoring

  • High-voltage line communication networks

  • Smart grid and utility automation systems

  • Long-distance overhead installations requiring high tensile load

Technical Specifications

Item Specification
Fiber Type ITU-T G.652D / G.657A1 Single Mode
Fiber Count 24 cores
Structure Type Stranded layer OPGW (stainless steel tube + ACS/AA wires)
Strength Member Aluminum-Clad Steel (ACS) / Aluminum Alloy
Outer Diameter 10.0–18.0 mm (customizable)
Tensile Strength 50–180 kN (depending on configuration)
Short Circuit Current 10–25 kA / 1s (customizable)
Operating Temperature -40°C to +85°C
Standards IEC 60794 / IEEE 1138 / ITU-T G.652D / GB/T 7424

24 Core OPGW Optical Fiber Composite Overhead Ground Wire ACS Stranded Structure 0

Ebocom Advantages

  • Professional OPGW Manufacturer: Over 12 years of experience in producing OPGW and ADSS cables for global power utilities.

  • High Production Capacity: 2 stainless steel tube lines + 5 OPGW stranding lines ensure timely delivery even for large orders.

  • Quality You Can Trust: Each reel undergoes strict optical attenuation, tensile, and torsion testing.

  • Tailored Engineering Solutions: Customized designs available for different voltage levels, spans, and environmental conditions.

  • Global Project Experience: Widely applied in Asia, Africa, the Middle East, and South America for major power transmission networks.
