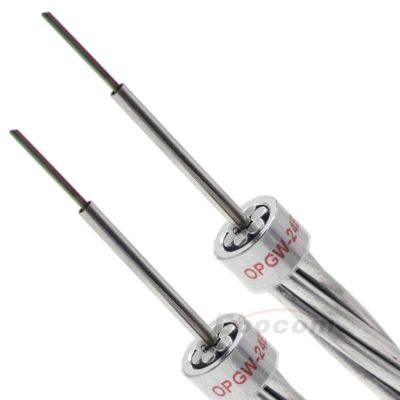

24 Core OPGW Fiber Optic Cable Central Tube Structure Optical Ground Wire for Power Transmission Lines
| Lieu d'origine | CHINE |
|---|---|
| Nom de marque | EBOCOM |
| Certification | ISO |
| Numéro de modèle | OPGW-24B1 |
| Quantité de commande min | 2000m |
| Prix | EXW ≥2000m $0.87/M ≥5000m $0.84/M |
| Détails d'emballage | Tambour en fer-bois ou tambour en bois sans fumigation |
| Délai de livraison | 7 à 15 jours |
| Conditions de paiement | T / t, l / c |
| Capacité d'approvisionnement | 50000 KMS/jour |
Contactez-moi pour des échantillons gratuits et des coupons.
Quel est l'app?:0086 18588475571
Wechat: 0086 18588475571
Skype est là.: sales10@aixton.com
Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.
xDétails sur le produit
| Type de câble | OPGW | Type de fibre | G652D, G655, G657. Je suis désolé. |
|---|---|---|---|
| Matériau de la couche centrale | Unité de tubes en acier inoxydable | Noyau de fibre | 24core |
| Socle | Disponible | Température de stockage | -40 ° C à + 70 ° C |
| Paquet de transport | Tambour en bois de fer | Couche | ACS, AA |
| Modèle | OPGW | ||
| Mettre en évidence | 24 core OPGW fiber optic cable,OPGW cable for power transmission,central tube OPGW optical wire |
||
Description de produit
Product Description
The Ebocom 24 Core OPGW (Optical Ground Wire) Fiber Optic Cable is designed for power transmission lines, integrating both optical communication and grounding functions in a single durable cable.

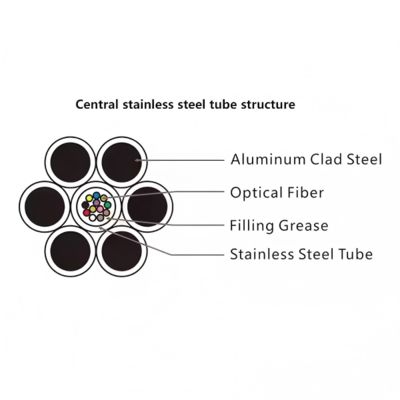

This model adopts a central stainless steel tube structure, housing up to 24 single-mode fibers, providing excellent mechanical strength, stable optical performance, and long-term reliability even in harsh outdoor environments.
Ebocom owns two independent stainless steel optical tube production lines and five OPGW stranding lines combining aluminum-clad steel wires and stainless steel tubes, ensuring consistent quality and fast delivery.
The cable’s high tensile strength and corrosion resistance make it ideal for installation on high-voltage transmission networks, delivering both electrical grounding and data transmission efficiently.
Key Features
-
24 Core Fiber Capacity: Supports long-distance and high-capacity communication across power transmission networks.
-
Central Tube Stainless Steel Structure: Excellent protection for fibers, providing superior compression and corrosion resistance.
-
High Tensile Strength: Aluminum-clad steel wires ensure mechanical reliability for power line installations.
-
Dual Functionality: Combines fiber optic communication and grounding in one cable.
-
Weather & Lightning Resistant: Performs reliably under extreme environmental and electrical conditions.
-
Factory Direct Supply: Produced in-house with complete control of quality and production timelines.
-
Customizable Design: Fiber type, lay direction, outer diameter, and structure can be adjusted for project needs.
Applications
-
Power transmission and distribution communication systems
-
High-voltage and ultra-high-voltage power grid networks
-
Smart grid and substation monitoring systems
-
Long-distance communication lines along power routes
-
Integration of communication and grounding functions
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Type | ITU-T G.652D / G.657A1 Single Mode |
| Fiber Count | 24 cores |
| Structure Type | Central stainless steel tube |
| Strength Member | Aluminum-clad steel wires |
| Outer Diameter | Customizable per project requirements |
| Tensile Strength | 30–180 kN (depending on configuration) |
| Short Circuit Current | 10–25 kA / 1s (customizable) |
| Temperature Range | -40°C to +85°C |
| Standards | IEC 60794 / IEEE 1138 / ITU-T G.652D |
Why Choose Ebocom OPGW Cables
-
Strong Production Capacity: 2 stainless steel tube lines + 5 OPGW stranding lines ensure high output and fast delivery.
-
Reliable Quality: In-house testing for tensile, torsion, and optical performance ensures stability and durability.
-
Professional Engineering Team: Supports customization for different voltage levels and span lengths.
-
Proven Performance: Widely used in power utilities and communication projects across Asia, Africa, and the Middle East.
