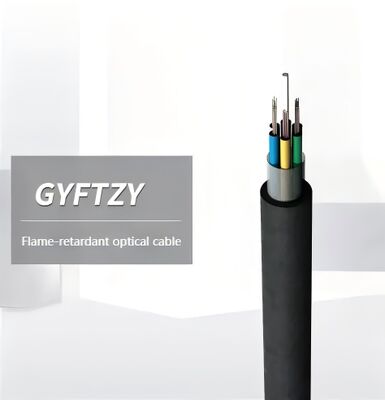

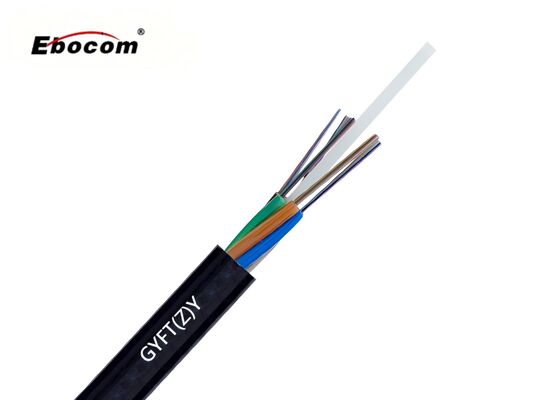

GYFTZY 48 Core Fiber Optic Cable Single-mode Standend Loose Tube Non-metallic Strength Member
| Lieu d'origine | Chine |
|---|---|
| Nom de marque | Ebocom |
| Certification | ISO |
| Numéro de modèle | La Suisse |
| Quantité de commande min | 2000m |
| Prix | 0.02 USD per Meter |
| Détails d'emballage | Tambours en contreplaqué ou personnalisés |
| Délai de livraison | 3-10 jours |
| Conditions de paiement | LC, T/T |
| Capacité d'approvisionnement | 100 km par jour |
Contactez-moi pour des échantillons gratuits et des coupons.
Quel est l'app?:0086 18588475571
Wechat: 0086 18588475571
Skype est là.: sales10@aixton.com
Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.
xDétails sur le produit
| Type de fibre | G652d | Nombre de fibres | 48 cœurs |
|---|---|---|---|
| Matériau de veste | PE/LSZH | Emballage | tambour 2-4km/wooden |
| Température de fonctionnement | -40°c +70°c | Membre de la force | FRP |
| OEM | Oui | Structure | Tube en vrac échoué |
| Mettre en évidence | 48 core single-mode fiber optic cable,non-metallic outdoor fiber optic cable,loose tube fiber optic cable |
||
Description de produit
Product Description
The GYFTZY all-dielectric flame-retardant fiber optic cable is engineered for indoor backbone cabling where both fire safety and electrical isolation are essential. This cable uses FRP strength members, a central loose tube, and a Low-Smoke Zero-Halogen (LSZH) outer jacket to deliver stable optical transmission without any metallic components.
With customizable flame-retardant performance and strict in-house vertical burning tests, the GYFTZY series ensures safe, reliable deployment in buildings, public facilities, and communication systems requiring enhanced fire protection.
Suitable for single-mode and multimode fibers, this cable supports high-bandwidth transmission while maintaining flexible installation and long-term durability.
Main Advantages
-
Zero-metal structure — no grounding required, immune to electromagnetic interference.
-
Fully flame-retardant LSZH jacket with customizable fire ratings (IEC / FT series / national standards).
-
High mechanical stability from FRP strength members for vertical and horizontal indoor routing.
-
Low-smoke, non-toxic characteristics for safe use in public and enclosed spaces.
-
Supports a wide range of fiber types including G657A2 for tight-bending FTTH environments.
-
Clean and flexible structure designed for fast installation in risers and cable ducts.
Recommended Applications
-
Building backbone cabling (FTTB, FTTB-LAN)
-
Riser and shaft installation in multi-story buildings
-
Indoor fire-safe networks in hospitals, airports, schools, and data centers
-
Industrial control rooms and environments requiring EMI immunity
-
MDU fiber distribution systems
-
Projects requiring flame-retardant, all-dielectric, LSZH indoor cables
Technical Specifications — GYFTZY LSZH Non-Metallic Cable
| Item | Details |
|---|---|
| Cable Model | GYFTZY All-Dielectric Flame-Retardant Optical Cable |
| Fiber Count | 2–144 cores (custom design available) |
| Fiber Options | G652D, G657A1, G657A2, OM2, OM3, OM4 |
| Cable Structure | Central loose tube with gel or dry water-blocking |
| Strength Member | Parallel FRP rods |
| Outer Jacket | LSZH flame-retardant |
| Flame Class Options | IEC 60332-1/3, FT1/FT4, B1/B2/B3 |
| Outer Diameter | Adjustable upon customer request |
| Tensile Strength | 600–1500 N |
| Crush Resistance | 1000–2000 N/10 cm |
| Temperature Range | -20°C to +60°C (operation) |
| Electrical Performance | Fully dielectric; lightning-safe |
| Standards Compliance | ITU-T, IEC, ISO9001 |
