High-Quality 4~144 Core GYTC8S Self-Supporting Outdoor Fiber Optic Cablefor Long-Distance Network Installation

  • High-Quality 4~144 Core GYTC8S Self-Supporting Outdoor Fiber Optic Cablefor Long-Distance Network Installation
  • High-Quality 4~144 Core GYTC8S Self-Supporting Outdoor Fiber Optic Cablefor Long-Distance Network Installation
Lieu d'origine Chine
Nom de marque Ebocom
Certification ISO
Numéro de modèle Gytc8
Quantité de commande min 2000m
Prix USD 0.05~0.1, Meter
Détails d'emballage Tambour en contreplaqué
Délai de livraison 10-15 jours
Conditions de paiement T / T, L / C, Western Union, Moneygram
Capacité d'approvisionnement 80 km par jour

Contactez-moi pour des échantillons gratuits et des coupons.

Quel est l'app?:0086 18588475571

Wechat: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Nom du modèle Gytc8 Température d'installation -30°C à +60°C
Emballage tambour 2-4km/wooden Durée de vie 25-30 ans
Installation Autoportante Gamme de fibres 2-144 cœurs
Matériau de veste Polyéthylène (PE) Blindé Bande en acier blindée
Usine Oui Modèle de fibre G652D G657A1 G657A2
Mettre en évidence

4~144 core outdoor fiber optic cable

,

GYTC8S self-supporting fiber cable

,

long-distance network installation fiber optic
Vous pouvez cocher les produits dont vous avez besoin et communiquer avec nous dans le babillard électronique.
Loose Tube
Laisser un message
Description de produit

Product Description:

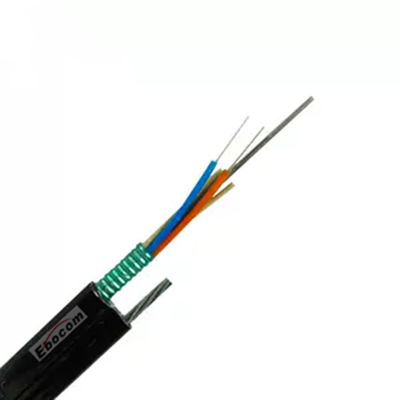

The GYTC8S fiber optic cable is a self-supporting Figure 8 outdoor optical cable designed for aerial installations and FTTH or access network projects. It integrates a messenger wire (supporting strand) and a steel tape armored optical core, providing both mechanical strength and excellent optical performance in harsh environments.

The messenger part — a galvanized steel wire or stranded steel cable — allows the cable to be easily suspended between poles without the need for additional supporting wires, significantly simplifying installation and reducing costs. The core is made up of loose tubes filled with water-blocking gel and single-mode or multimode fibers, ensuring reliable transmission and long-term stability.

The GYTC8S cable is suitable for aerial, outdoor, and last-mile FTTH applications, especially in rural broadband, CCTV systems, and telecom backbone networks. The steel tape armor provides strong protection against rodents, moisture, and mechanical impact, making it ideal for both urban and countryside deployments.

Key Features:

  • Figure 8 self-supporting design — Integrated messenger wire for easy aerial installation.

  • Steel tape armored — Enhances crush resistance and protection against rodents and environmental stress.

  • Water-blocking structure — Prevents moisture penetration and fiber damage.

  • High tensile strength — Ideal for long-span aerial installations.

  • Supports various fiber types — G.652D, G.657A1, OM2, OM3 available.

  • UV and temperature resistant — Durable in outdoor conditions (-40°C ~ +70°C).

  • Customizable messenger wire — Single steel wire or stranded steel cable (e.g., 7×1.0mm).

Technical Specifications:

Item Description
Cable Type GYTC8S Self-Supporting Outdoor Fiber Optic Cable

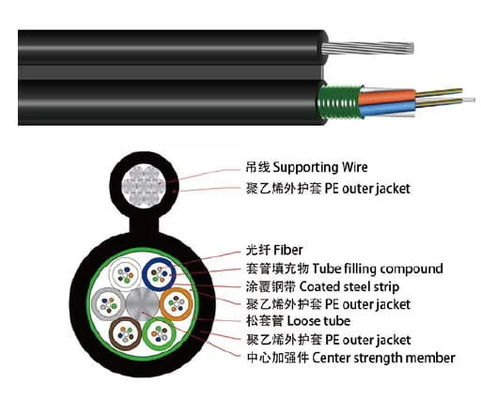

Structure Figure 8 design with messenger wire + loose tube armored cable
Messenger Wire Galvanized steel wire or stranded steel cable (e.g., 7×1.0mm)
Fiber Type Single-mode (G.652D / G.657A1) or Multi-mode (OM2 / OM3)
Core Count 2–144 fibers
Armoring Corrugated steel tape
Strength Member Phosphated steel wire
Outer Sheath Material PE
Installation Method Aerial, self-supporting
Operating Temperature -40°C to +70°C
Span Range 50m – 200m depending on messenger wire diameter

Applications:

  • FTTH (Fiber to the Home) aerial network deployments

  • Rural broadband and telecom access networks

  • CCTV and intelligent security systems

  • Long-span transmission lines

  • Industrial park and campus fiber infrastructure

High-Quality 4~144 Core GYTC8S Self-Supporting Outdoor Fiber Optic Cablefor Long-Distance Network Installation 0

Why Choose Ebocom?

As a professional optical cable manufacturer with over 12 years of experience, Ebocom offers:

  • Complete production lines for GYTC8S, GYXTC8S, ADSS, OPGW, GYTA, GYTS, and drop cables

  • OEM/ODM customization (fiber count, jacket color, messenger wire type, printing, and packaging)

  • Strict quality testing in our in-house performance laboratory

  • Fast delivery & competitive pricing directly from the factory
