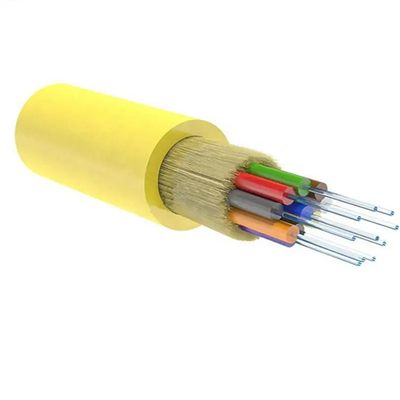

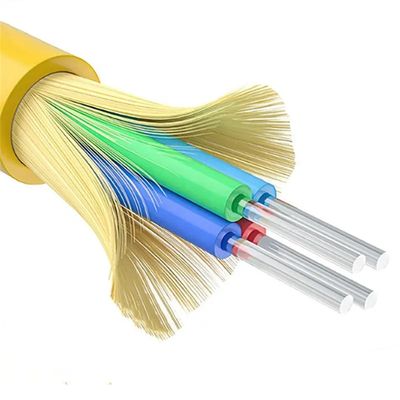

Indoor Fiber Optic Cable 6 8 12 core OM1 OM2 OM3 OM4 OM5 for Distribution Use
| Lieu d'origine | Shandong ， Chine |
|---|---|
| Nom de marque | EBOCOM |
| Certification | ISO TLC |
| Numéro de modèle | GJFJV-8B1 |
| Quantité de commande min | 2000m |
| Prix | EXW ≥2000m $0.2/M ≥5000m $0.17/M |
| Détails d'emballage | 1. tambour en fer-bois ou tambour en bois non fumigé, tambour en bois normal. 2. la taille du tambou |
| Délai de livraison | 5 à 8 jours |
| Conditions de paiement | T/T |
| Capacité d'approvisionnement | 5 000 km/jour |
Contactez-moi pour des échantillons gratuits et des coupons.
Quel est l'app?:0086 18588475571
Wechat: 0086 18588475571
Skype est là.: sales10@aixton.com
Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.
xDétails sur le produit
| Nom du produit | Les États membres peuvent prévoir des mesures de prévention et de contrôle. | Veste | PVC /LSZH |
|---|---|---|---|
| Membre de la force | Fil aramide | Fibre | Mode unique / mode multiple |
| Marque | Ebocom ou OEM | ||
| Mettre en évidence | 6 core indoor fiber optic cable,OM4 indoor fiber optic cable,distribution use fiber optic cable |
||
Description de produit
Description
An indoor fiber optic cable is a specialized cable designed for use within buildings that features a flame-retardant, low-smoke jacket to comply with fire safety regulations. Unlike outdoor cables, which are built to withstand harsh environmental conditions and are often armored, indoor cables are more flexible and focus on safety and ease of installation in structured environments like conduits, cable trays, or ductwork.
Key characteristics
Flame-retardant jacket: The outer jacket is made of materials that are flame-retardant and can also be low-smoke zero-halogen (LSZH) to prevent the release of toxic fumes in a fire.
Flexibility: These cables are typically more flexible and have a tight-buffered construction, making them easier to manage and route within a building.
Lower tensile strength: They do not require the same level of physical strength as outdoor cables, which are built to withstand pulling, weather, and UV exposure.
Common use cases: They are used for data transmission within local area networks (LANs), data centers, and for connecting devices and networks inside a building.
Installation methods: Indoor cables can be installed in ducts, cable trays, or elevated over drop ceilings and under raised floors, but they are not designed for direct burial or exposure to the elements.
Applications
Indoor wiring / indoor communication equipment, between equipment and instruments
Mechanical Specifications
| Cable Model | Outer Diameter
(mm) |
Weight
(kg/km) |
Tensile Strength(N) | Crush Resistance(N/100mm) | Bending Radius | Jacket Thickness(mm) | |||
| Long term | Short term | Long term | Short term | Dynamic | Static | ||||
| GJFJV-2F | 3.6±0.2 | 12.5 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.45±0.05 |
| GJFJV-4F | 4.7±0.2 | 17.6 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.8±0.1 |
| GJFJV-6F | 5.2±0.2 | 22.8 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-8F | 5.8±0.2 | 26.7 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-12F | 6.3±0.2 | 32.7 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-24F | 8.0±0.2 | 53 | 200 | 660 | 300 | 1000 | 20D | 10D | 1.0±0.1 |
