GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket

  • GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket
Lieu d'origine CHINE
Nom de marque Ebocom
Certification ISO
Numéro de modèle GJBFJH
Quantité de commande min 2000m
Prix 0.1 USD per Meter
Détails d'emballage Tambours en contreplaqué ou personnalisés
Délai de livraison 3-10 jours
Conditions de paiement L / C, T / T
Capacité d'approvisionnement 50 km par jour

Contactez-moi pour des échantillons gratuits et des coupons.

Quel est l'app?:0086 18588475571

Wechat: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Cœur 2 à 48 fibres Membre de la force Fils à base d'aramide/fil de polyester
Gaine Lszh Température -20 à 70°C
les certifications ISO Puffer à fibres Fibre de tampon serré
Type de fibre Fibre multi de mode Couleur fibre Reportez-vous au chromatogramme
Mettre en évidence

OM2 multimode fiber optic cable

,

indoor breakout fiber cable LSZH

,

4-48 core fiber optic cable
Laisser un message
Description de produit

The GJBFJH OM2 indoor breakout fiber optic cable is a durable and flexible solution designed for indoor distribution, interconnection, and patching applications.

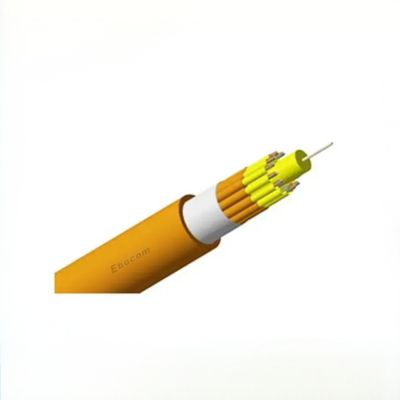

It features a central FRP strength member and several 2.0mm sub-units, each containing a tight-buffered OM2 multimode fiber, surrounded by polyester or aramid yarns and an LSZH jacket.
This structure provides easy termination, strong mechanical protection, and excellent fire safety, making it perfect for data centers, local area networks (LAN), and indoor wiring systems.

Main Features

  • High-speed performance: OM2 multimode fibers support up to 10Gbps transmission over 550 meters, ensuring stable and efficient data transfer.

  • Safe for indoor environments: LSZH outer sheath produces minimal smoke and no halogen gases during fire incidents.

  • Strong mechanical protection: Central FRP rod enhances tensile strength and cable stability during installation.

  • Simple deployment: Each sub-unit can be independently stripped and connected — no breakout kit required.

  • Versatile use: Ideal for enterprise networks, backbone cabling, patch panels, and short-distance communication links.

Applications

  • Data centers and control rooms

  • Building backbone and horizontal cabling

  • Indoor fiber distribution and patching systems

  • LAN and server room connections

  • Short-distance high-speed transmission networks

Technical Specifications

Item Description
Cable Type GJBFJH Indoor Breakout Fiber Optic Cable
Fiber Type OM2 Multimode (50/125μm)
Fiber Count 2–48 cores (customized)
Sub-unit Construction 2.0mm tight-buffered fiber + Polyester/Aramid yarns + LSZH jacket
Central Strength Member FRP (Fiber Reinforced Plastic)
Outer Sheath Material LSZH (Low Smoke Zero Halogen)
Outer Diameter 7.0–12.5mm (depends on fiber count)
Attenuation ≤ 3.5dB/km @850nm, ≤ 1.5dB/km @1300nm
Tensile Strength ≥ 1000N
Crush Resistance ≥ 1000N/100mm
Operating Temperature -20°C ~ +70°C
Color Options Orange (OM2 standard) or customized per project requirement

GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket 0

Advantages of Choosing Ebocom

  • 12+ years manufacturing experience in indoor and outdoor fiber optic cables

  • In-house testing lab for performance and materials verification

  • OEM/ODM customization for fiber type, color, jacket, and printing

  • Fast delivery with global logistics support and stable quality supply
