Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3

Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3
Lieu d'origine:Shandong, en Chine
Nom de la marque:EBOCOM
Attestation:ISO TLC
Numéro de modèle:GJFJV
Quantité minimum de commande:2 000 m
Prix:EXW ≥2000m $0.18/M ≥5000m $0.14/M
Emballage standard:1. tambour en fer-bois ou tambour en bois non fumigé, tambour en bois normal. 2. la taille du tambou
Délai de livraison:5 à 8 jours
Conditions de paiement:T/T
Capacité d'approvisionnement:5 000 km/jour
Détails du produit
Mettre en évidence:

G652D Indoor Colored Optical Fiber Cable

,

24 Core Optical Fiber Cable

Model: Cable à fibre optique à tampon étroit
Brand: Ebocom/OEM
Length: Personnalisé
Cable Jacket: Le PVC, le LSZH, le PE
Fiber Type: Résultats de l'enquête
Strength Member: Fils à base d'aramide
Description du produit
Spécifications détaillées et caractéristiques

Product Introduction:

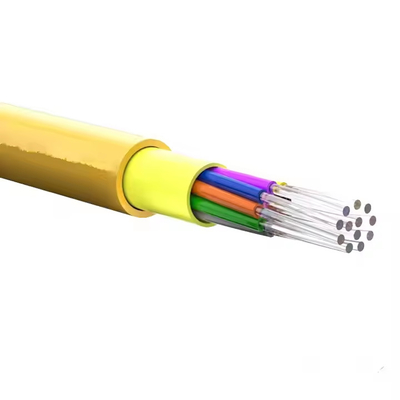

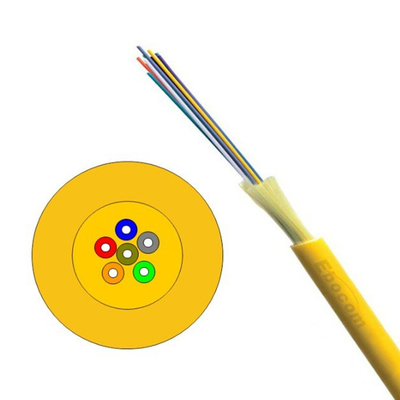

GJFJV type tight-buffered optical fiber bundle cable is made by evenly winding aramid yarn or high-strength glass yarn tight-buffered optical fibers as reinforcing members, and then covered with polyvinyl chloride sheath.



Features:

  1. Enhanced protection: The tight buffer provides excellent protection against physical damage, moisture, and environmental factors, ensuring the integrity and reliability of the optical fibers.
  2. Increased flexibility: The tight buffer layer makes the cable more flexible and allows for easier termination and handling during installation and maintenance processes.
  3. Small form factor: Due to the compact design, tight buffer cables have smaller overall diameters, making them easier to manage and install in limited space environments.
  4. Direct termination capabilities: The tight buffer design allows for direct termination of connectors onto the fiber, eliminating the need for additional protective elements like splice closures.



Applications:

.Suitable for Indoor distribution
·Pigtail jumper, patch cord
·Optical connection of Communication equipment and connection machine.
·Floor installation, maintenance friendly.









Optical Characteristics

Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22         16
G657A1 0.36/0.22         10
G657A2 0.36/0.22         7.5
50/125   3.0/1.0 ≥500/500     30
62.2/125   3.0/1.0 ≥200/500     30
OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5
