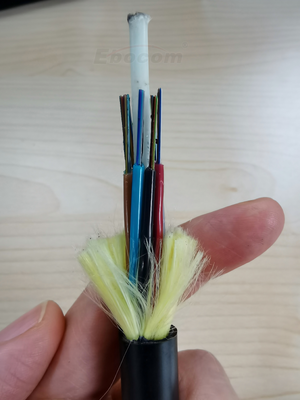

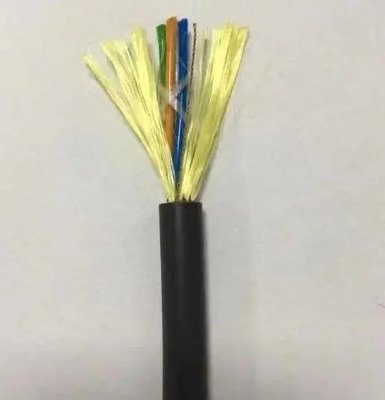

72 Core ADSS Fiber Optic Cable Single Jacket For 100M Span Use
| Lieu d'origine | Chine |
|---|---|
| Nom de marque | Ebocom |
| Certification | ISO |
| Numéro de modèle | ADSS |
| Quantité de commande min | 2000m |
| Prix | 0.02 USD per Meter |
| Détails d'emballage | Tambours en contreplaqué ou personnalisés |
| Délai de livraison | 3-10 jours |
| Conditions de paiement | LC, T/T |
| Capacité d'approvisionnement | 100 km par jour |
Contactez-moi pour des échantillons gratuits et des coupons.
Quel est l'app?:0086 18588475571
Wechat: 0086 18588475571
Skype est là.: sales10@aixton.com
Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.
xDétails sur le produit
| Type de fibre | G652d | Nombre de fibres | 72 noyaux |
|---|---|---|---|
| Matériau de la veste | PE | emballage | tambour 2-4km/wooden |
| Température de fonctionnement | -40°c +70°c | Portée | 100m à 800m |
| Membre de la force | Fil d'aramide FRP+Kevlar | OEM | Oui |
| Structure | Tube en vrac échoué | ||
| Mettre en évidence | 72 core ADSS fiber optic cable,ADSS fiber optic cable single jacket,ADSS fiber cable for 100M span |
||
Description de produit
Product Overview
The 72 Core Single Jacket ADSS Cable is a cost-effective, high-performance aerial fiber solution designed for short and medium-span applications. By utilizing a 6-loose-tube structure and a streamlined Single Jacket (SJ) design, this cable offers a reduced diameter and lighter weight, significantly lowering the load on utility poles.
Reinforced with high-modulus Aramid Yarn, it provides the necessary tensile strength for reliable performance in distribution power lines and urban fiber rollouts.
Targeted Application Scenarios
The Single Jacket ADSS is the preferred choice for projects where weight and ease of handling are priorities:
-
Distribution Power Lines: Perfectly suited for installation on low-voltage and medium-voltage distribution poles where space and weight capacity are limited.
-
Urban FTTH Rollouts: Ideal for "Fiber to the Home" deployments in densely populated areas, allowing for quick and efficient aerial installation.
-
Short-Span Crossings: Optimized for spans between 50m and 150m, making it a budget-friendly alternative for campus networks and municipal connectivity.
-
Low-Wind & Low-Ice Regions: Designed for environments with moderate weather conditions, providing a balanced solution between cost and mechanical durability.
-
Last-Mile Connectivity: Used as a reliable backbone for 5G small cell sites and CCTV security networks in aerial infrastructures.
Technical Specifications
| Item | Specification Details |
| Fiber Count | 72 Cores |
| Structure | 6 Loose Tubes (12 Fibers per tube) |
| Strength Member | High-Modulus Aramid Yarn |
| Jacket Type | Single Jacket (HDPE / AT) |
| Fiber Type | G.652.D (Singlemode) |
| Cable Diameter | Approx. 10.5mm - 12.0mm |
| Typical Span | 50m - 150m (Customizable) |
| Tensile Strength | Optimized for specified span and load |
| Operating Temp | -40°C to +70°C |
Why Shandong Yibo Optronics?
Shandong Yibo Optronics Technology Co., Ltd. leverages 13 years of manufacturing history to deliver high-quality ADSS solutions tailored to your infrastructure needs.
-
Performance Validation: Even our lightweight Single Jacket cables are rigorously tested in our Independent Performance Lab. We ensure that the fiber excess length is perfectly managed within the 6 loose tubes to prevent attenuation under stress.
-
Cost-Efficiency without Compromise: By optimizing our production process and sourcing premium raw materials, we provide a durable product that reduces total project costs without sacrificing network longevity.
-
Expert Engineering: Our decade of experience allows us to provide accurate sag and tension calculations, ensuring your 72-core deployment is safe and compliant with local utility standards.
