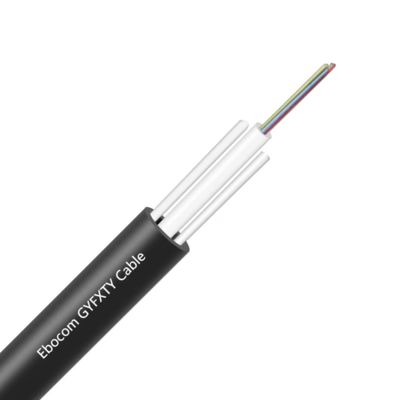

High Quality GYFXTY Central Loose Tube Non-Armored Outdoor Fiber Optic Cable with Parallel FRP Strength Member

  • High Quality GYFXTY Central Loose Tube Non-Armored Outdoor Fiber Optic Cable with Parallel FRP Strength Member
  • High Quality GYFXTY Central Loose Tube Non-Armored Outdoor Fiber Optic Cable with Parallel FRP Strength Member
Lieu d'origine CHINE
Nom de marque Ebocom
Certification ISO
Numéro de modèle Gyfxty
Quantité de commande min 2000m
Prix 0.02 USD per Meter
Détails d'emballage Tambours en contreplaqué ou personnalisés
Délai de livraison 3-10 jours
Conditions de paiement L / C, T / T
Capacité d'approvisionnement 100 km par jour

Contactez-moi pour des échantillons gratuits et des coupons.

Quel est l'app?:0086 18588475571

Wechat: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Résistance à la traction 1KN 1,5KN 2KN 3KN Type de fibre Mode unique
FRP 0.5-2.8 mm Longueur de câble Un kilomètre deux kilomètres.
Nom du modèle Câble de descente Matériau de gaine externe PE/LSZH
Couleur de câble Noir
Mettre en évidence

Outdoor fiber optic cable with FRP strength

,

Non-armored FTTH drop cable

,

Parallel loose tube fiber cable
Laisser un message
Description de produit

Product Description

The GYFXTY Central Loose Tube Fiber Optic Cable is a non-armored outdoor cable specially designed for FTTH networks, backbone connections, and last-mile telecom installations. Its core contains a single central loose tube filled with water-blocking gel to protect the optical fibers and ensure low signal attenuation.

Two parallel FRP (Fiber Reinforced Plastic) strength members provide excellent tensile strength and non-metallic construction, making the cable ideal for areas with lightning risk or electromagnetic interference. Lightweight yet durable, this cable is known in some markets as Ground Drop Cable, delivering stable, high-bandwidth transmission for a wide range of outdoor applications.

Ebocom offers GYFXTY cables with high-quality G652D, G657A1, or G657A2 fibers, and supports OEM/ODM customization, including fiber count, jacket type, printing, and packaging to meet specific project requirements.

Key Features

  • Central Loose Tube Design for superior fiber protection and easy handling

  • Two Parallel FRP Strength Members for high tensile performance and all-dielectric safety

  • Non-Armored, Lightweight Construction for cost-effective transportation and installation

  • Excellent UV resistance, moisture blocking, and long-term reliability

  • Compatible with aerial, duct, or ground drop installations

  • OEM/ODM Service: customizable fiber count, jacket color, drum length, and print

Applications

  • FTTH (Fiber to the Home) networks

  • Telecommunication backbone and access networks

  • Aerial pole-to-pole or duct installations

  • Rural broadband and last-mile fiber connections

  • Electrically sensitive environments requiring all-dielectric cables

Technical Specifications

Item Specification
Fiber Type Single-mode (G652D / G657A1 / G657A2) or Multimode optional
Fiber Count 2–24 cores

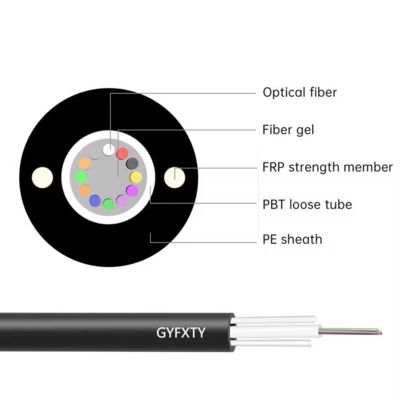

Cable Structure Central loose tube filled with water-blocking gel
Strength Member Two parallel FRP (Fiber Reinforced Plastic) rods
Outer Jacket Material UV-resistant PE or LSZH
Outer Diameter Approx. 7.0 – 10.5 mm (customizable)
Installation Methods Aerial, duct, or ground drop
Operating Temperature -40°C to +70°C
Standards Compliance ITU-T G.652/G.657, IEC 60794, ISO/IEC

High Quality GYFXTY Central Loose Tube Non-Armored Outdoor Fiber Optic Cable with Parallel FRP Strength Member 0

Why Choose Ebocom

  • 13 Years of Manufacturing Experience in FTTH and outdoor fiber optic cables

  • Strict Quality Testing with an in-house product performance laboratory

  • Fast Production & Delivery, with daily capacity of up to 100 km

  • Proven global export experience for telecom and broadband projects

For bulk orders, OEM service, or a custom quotation, contact Ebocom today to get high-quality GYFXTY Ground Drop Cable with FRP strength members at competitive factory-direct prices.
